Rolling Shutter Chain Motor Remote Controller

Description

Rolling Shutter Chain Motor Remote Controller in UAE

Rolling Shutter Door Remote Controller Receiver

• Garage Door Wireless Remote
• Shutter Door Controller
• Control Chain Type External Electric Roller Shutter Door Controller 433Mhz,
• For Garage, Electric Door, Rolling Shutter Door

Product Description:

• Working voltage: AC220V
• Ambient temperature: -20 ° C -60 ° C
• Output current: 2A/220VAC
• Remote control distance: ≥50m
• Decoding method: single chip decoding
• (optional fixed code remote control and learning code remote control)
• Working frequency: 433MHZ

Pair code:

• Stop the motor by first pressing the stop motor on the remote control.
• Press the code button on the controller to release the hand,
• the power indicator will turn off the red light,
• and then press any button on the remote control.
• The power indicator flashes red three times,
• indicating that the code is successful.

Clearing code:

• Long press on the controller on the code key does not let go,
• the power indicator red light from on to off to flash three times,
• release the code button to clear the code successfully
• (all remote control paired with the controller has been cleared).

Motor forward/reverse setting:

• When you need to change the direction of the motor in the reverse direction,
• press and hold the remote control lock button for a long time.
• About five seconds, the power indicator flashes red three times.
• Release the remote control lock button
• and the motor reverse direction changes successfully.
• Return to the original setting operation.
• Be sure to stop the motor before changing
• the direction of the motor in the forward and reverse direction.

Note :

• This remote control kit only for Rolling Shutter Side Chain Motor,
• Can not work for tubular motor.

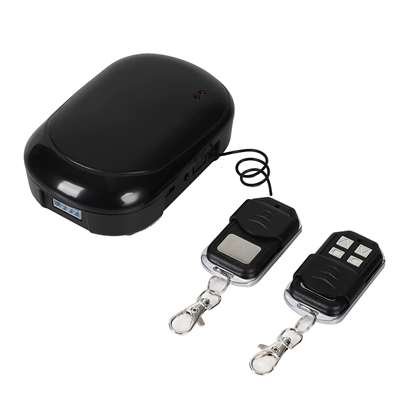

Packing list:

• 1 x Control box
• 2 x Remote control
• 1 x Wirelless wall push button
• 1 x Instruction manual
