ROGER R20/310 Swing Gate Motor

Description

ROGER R20/310 Automatic Swing Gate Motor in Dubai UAE

ROGER R20/310 Swing Gate Opener:

• KIT R20/310
• KIT Electromechanical actuator 230V AC
• irreversible ideal for swing gates with leaf up to 2,5 m

ROGER Technical features:

• Power line supply : 230V AC – 50Hz
• Motor power supply : 230V AC
• Power rating : 200W
• Frequency of use : 40%
• Thrust : 2500N
• Operating temperature : -20+55 C°
• Protection level : IP44
• Reductor Type : Irreversible
• Manoeuvre speed : 1,66 cm/s
• Opening time : 19 s
• Stroke : 320 mm
• Motor thermal protection : 150 C°
• Incorporated condenser : 15 µF
• Limit switch : Microswitch in opening (optional in closing)
• Encoder :
• Maximum dimension product in mm (L x W x H) : 858,5 x 120 x 165
• Product weight packed (Kg) : 20,8.

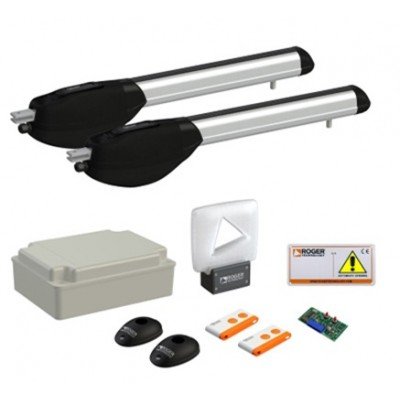

ROGER R20/310 Kit Contains:

• 2 x R20/300 Electromechanical for swing gate with leaf up to 2,5 m.
• 1 x  H70/200AC/BOX Control unit for 2 motors 230V AC with slow down.
• 1 x H93/RX22A/I Plug-in receiver 2 channels 433,92 Mhz.
• 2 x T80/TX2 Dual code transmitter.
• 1 x R90/F2ES Pair of external photocells synchronized.
• 1 x FIFTHY/230 LED flashing light.
• 1 x R99/C/001 Signboard “Automatic Opening.
