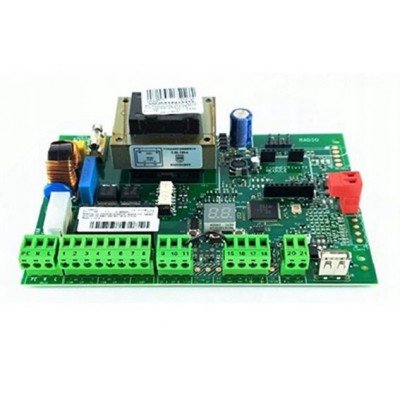

FAAC E045S Gates Control Board

Description

FAAC E045S Gates Control Board in Dubai UAE

FAAC E045S Swing Gate Motor Control Board:

FAAC Swing Gate Motor Control Board:

• FAAC 413 Swing Gate Motor,
• FAAC 415 Swing Gate Motor,

E045S Electronic control unit:

• For 230V swing-leaf gate automations.
• The E045S electronic control unit
• can command one or two operators
• Thanks to the new 2easy and OM
• quick insert module (connector set-up),
• with the external receivers
• and with XP 15B and XP 20B D photocells
• The BUS XIB interface is provided
• for the connection of traditional photocells.
• Basic programming:
• Operating logic : Semiautomatic,
• Automatic, Semi-automatic step-by-step,
• step-by-step Auto, Auto Security stepper,
• Semi-automatic B, C Deadman
• Pause time : Programmable (from 0 to 9 min 50 sec)
• Number of motors : Selectable
• Thrust power Adjustable on 50 levels for each motor independently
• Encoder use : Selectable
• Leaf delay time in closing : Programmable (from 0 to 1 min 30 sec)
• BUS 2-Easy device registration : Selectable
• Motor Power : 1 and 2 (independently)
• Working time learning : Simple self-learning (max 4 min and 10 sec).
• Self-learning working and deceleration time
• of two leaves in one complete working cycle only.
• With SAFE coder absolute encoder,
• the open/closed/deceleration positions are learned
• Advanced programming : Reversing stroke and ram stroke.
