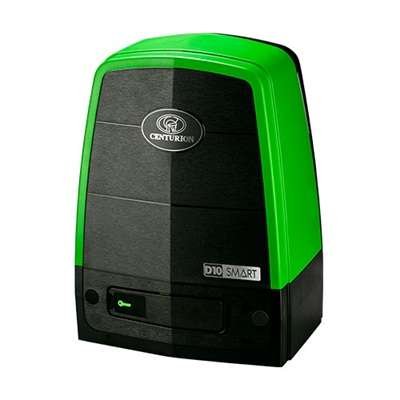

Centurion D10 Smart 1000 Kg Sliding Gate Motor

Description

Centurion D10 Smart 1000 Kg Sliding Gate Motor in UAE

Centurion D10 Smart 1000 Kg Sliding Gate Motor:

Main features:

• Taking intelligence to the next level a machine crafted
• for excellence and perfected through innovation
• Pushing the limits of technology to bring you the ultimate in strength,
• security and endurance
• suitable for gates weighing up to 1t with 750 daily operations
• SMART hardware and SMART connectivity provide the best experience for installers
• Intelligent theft and break-in protection
• with an integral vibration sensor and patented theft-deterrent cage
• More space and dedicated accessory tray for complementary solutions such as GSM devices
• World-class reliability with a sealed gearbox and improved,
• more secure manual release mechanism
• Die-cast aluminium gearbox coupled with a high-torque
• DC motor built for pure power and performance
• Uncompromising security, uninterrupted convenience with 24V battery backup
• Instant access to advanced, in-app diagnostics and logs,
• monitoring system health in real time
• Accurate and safe position control incorporating reliable Hall Effect technology
• Improved wire routing
• SMART universal controller compatible with all CENTURION SMART solutions

Technical Specifications:

• Input voltage : 90V – 240V AC +/-10% @ 50Hz
• Current consumption (Mains) : 250mA
• Battery charger current output : 1.8A @ 27.4V +/-1%
• Maximum number of operations per day : 750
• Duty cycle Mains present : 45%
• Motor voltage : 24V DC
• Motor power supply : Battery-driven (Standard Capacity – 2x 12V 7.2Ah)
• Current consumption (motor at rated load) 8A
• I/O 1-4 100mA (12/24V)
• I/O 5 and 6 : 3A (12/24V) 10sec Pulse
• Motor push force starting :  40Kgf
• Motor push force rated : 30Kgf
• Gate mass – maximum : 1000Kg
• Gate length – maximum : 50m
• Gate speed (varies with load)  : Up to 26m/min
• Manual Override : Lockable with key release
• Drive Pinion : 17T Module
• Operations in standby with 2x 7Ah batteries : Power saving (15m/min
• Operating temperature range : -15°C to +50°C
• Degree of protection : IP54
