CAME AMICO 200KG Swing Gate Motor

Description

CAME AMICO 200KG Swing Gate Motor in Dubai UAE

CAME AMICO Swing Gate Opener:

AMICO Ideal solution for residential settings Gate leaves up to 1,8 m.

Main Features:

• Trilobe key release system.
• Integrated, adjustable mechanical limit switches.
• Simplified connections and one, three-conductor cable.
• Supporting structure in die-cast aluminium.
• Ready for operation in case of power outage.
• Max. length of leaf 1.8m.
• Max. weight of leaf 200 kg.
• Max. leaf opening (°) 120.

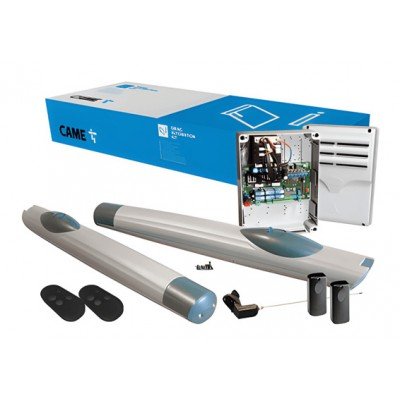

CAME AMICO Included:

• 2 x Came AMICO Swing Gate Motor.
• 1 x Came Control board.
• 2 x Remote control.
• 1 x Pair of Photocells.
• 1 x Remote receiver.
• 1 x Blinker Light.
• 2 x Fixing Bracket.
• 1 x Push button.

CAME AMICO Technical features:

• Type : A18230.
• Protection rating : IP44 :
• Power supply : 230V 50/60 Hz.
• Motor power supply : 230V.
• Current draw : 1,2.
• Power : 80W.
• 90° opening time : 19
• Duty cylce : 50.
• Thrust : 400-2000N.
• Operating temperature : -20°C min / 55°C max.
• Motor’s thermo-protection : 150.
